3-way tap WS3-120 E stainless steel flexible hose

3-way tap WS3-120 E stainless steel flexible hose

Suitable for all under-sink drinking water filters from our range.

669,00 €

inkl. MwSt. zzgl. Versandkosten

WUNSCHLISTE

Bestellbar Artikel ist nicht vorrätig, aber sofort bestellbar - Versand erfolgt nach Wareneingang. Voraussichtliche Lieferzeit: 5 - 8 Werktage

SKU:	A001657
Hersteller:	Alvito GmbH
Type:	Wasserfilter > Armaturen > 3-Wege Wasserhahn
Weight::	3.8 kg

Fragen zu diesem Artikel

An Freunde senden

Pay easily and securely

Free shipping within Germany for orders over €150
Pay easily and securely

Free shipping within Germany for orders over €150

Description

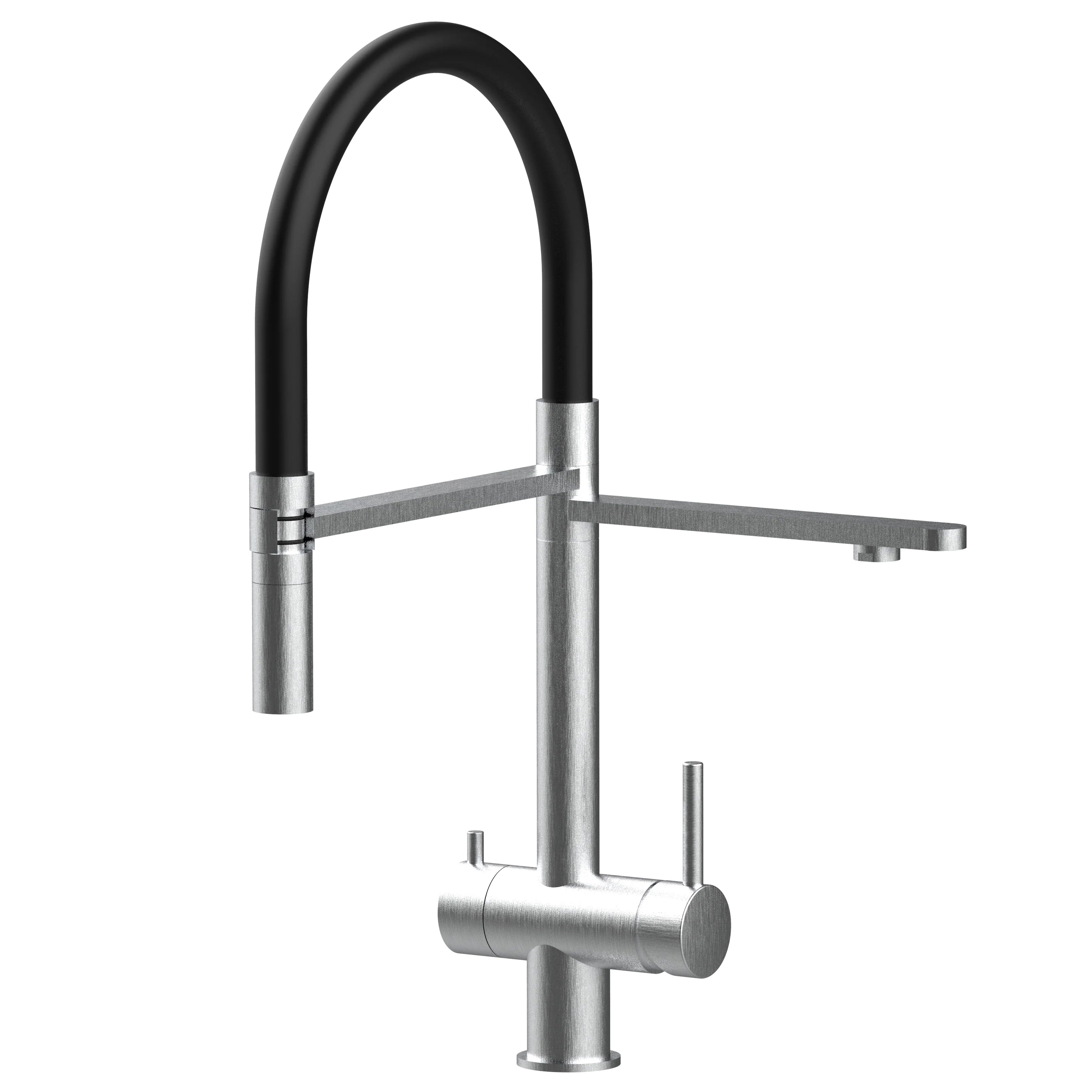

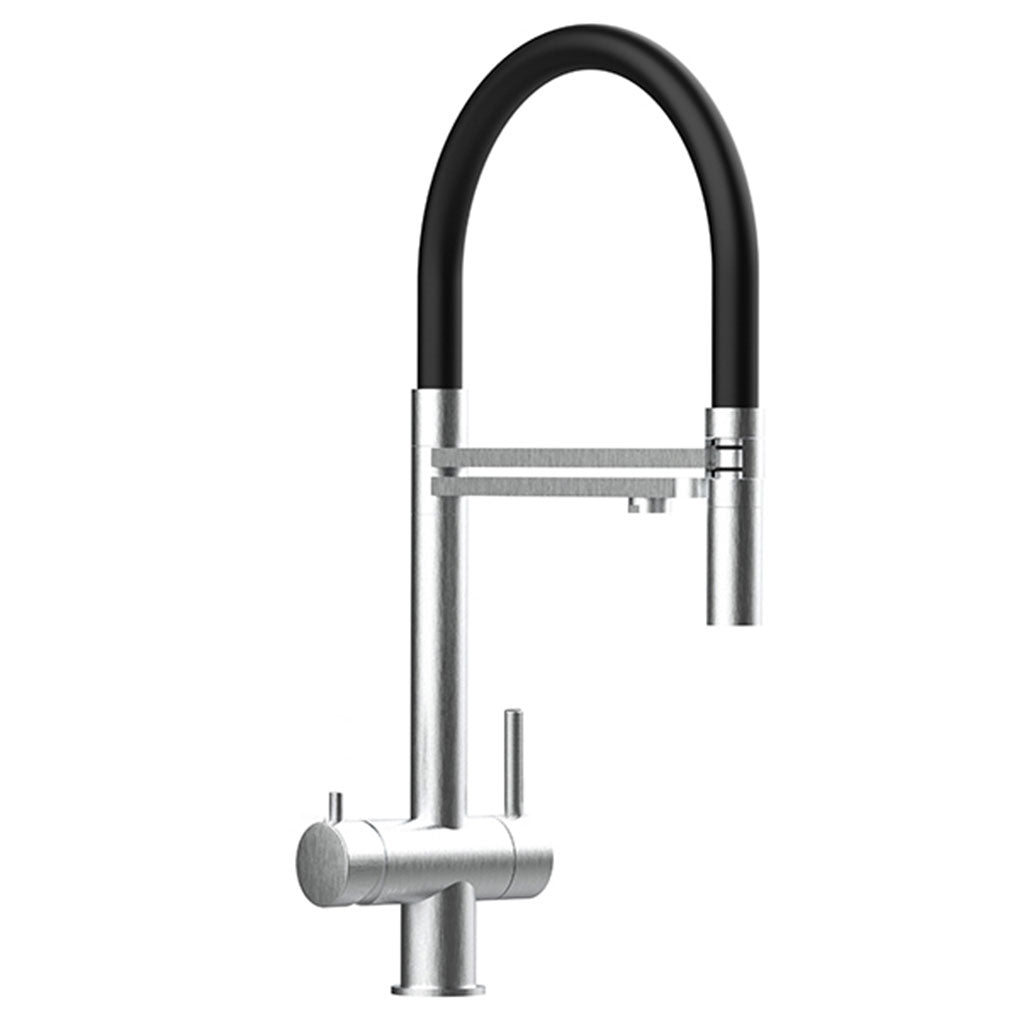

WS3-120 E stainless steel flexible hose

Replaces your existing faucet!

This high-quality 3-way faucet made of V4A stainless steel is the optimal solution if you don't want or can't install an additional faucet for the water filter. With a height of 50 cm and a flexible black silicone shower hose that can be detached from the bracket and used as a shower, it is one of the top models in terms of functionality and appearance. The 3-way faucet is equipped with a utility water outlet (cold and hot water) and a separate filter water outlet located on a separate pivoting arm. The larger mixing lever regulates the unfiltered water (hot and cold), and the smaller control regulates the filtered drinking water. Suitable for all under-sink drinking water filters from our range.

Special features
- Flexible spout made of black silicone
- Made of high-quality matt stainless steel
- Comfortable 2-jet hand shower
- Large radius of action of approx. 45 cm through the hose shower
- diametrical fastening unit "FIX & LOCK" to mount it firmly on the sink.
- No additional drilling required in the worktop or sink
- Separate regulators and spouts for filtered and unfiltered water
- Ceramic cartridges for a long service life
- Can be combined with inline swirler
- Silicone hoses in grey and white available for conversion
Notice

This stainless steel faucet features all water-carrying components made of V4A (AISI 316L) stainless steel, ensuring that the water only comes into contact with the stainless steel, the ceramic discs in the cartridge (upper part), the seals, and the aerator. The included reinforced hoses are made of PEX (polyethylene) and are DVGW KTW A1 certified.

Attention - important information!
- Do not install behind pressureless boilers!
- Only inline water swirlers are suitable for this fitting!
- To connect a reverse osmosis filter system or Carbonit filter devices, a suitable connection piece is required, which must be ordered separately.
H2O Economy -> Tap connector 3/8" AG - 3/8" BSP
Rowa TwoFix/OneFix -> Tap connector 3/8" AG - 3/8" BSP + reducing connector 3/8' nozzle to 1/4' pipe
Carbonit Vario -> Double nipple 3/8" brass or double nipple 3/8" stainless steel

Technische Daten

Maße/Daten

Gesamthöhe ab Platte:	50,0 cm
Höhe ab Platte bis Auslauf Unterkante:	17,0 cm
Ausladung Auslauf bis Mitte Sockel:	17,9 cm
Durchmesser Sockelblende:	5,0 cm
Lochgröße Arbeitsplatte/Spüle:	Ø 3,5 cm
Maximale Stärke der Arbeitsplatte:	4,0 cm
Panzerschlauch (Länge):	45 cm
Leitungsdruck:	max. 6 bar

Material

Armatur:	V4A (AISI 316L) Edelstahl matt, Silikon
Wasserführung:	V4A (AISI 316L)
Ventil-Kartusche:	keramisch
Panzerschlauch:	PEX, DVGW KTW A1 Zertifizierung

Anschluss

Für den Anschluss einer Umkehrosmose-Filteranlage oder Carbonit Filtergeräte ist ein passendes Anschluss-Stück nötig, welches separat bestellt werden muss.

Anschlussgewinde:	3/8' IG
Benötigte Anschluss-Stücke an Filtergerät:
Economy/Select:	Hahnanschluss-Stück 3/8" AG - 3/8" BSP
Rowa One/TwoFix:	Hahnanschluss-Stück 3/8" AG - 3/8" BSP + Reduzierverbinder 3/8' Stutzen auf 1/4' Rohr
Carbonit Vario	Doppelnippel 3/8" messing oder Doppelnippel 3/8" edelstahl
