  • Pfeil Description

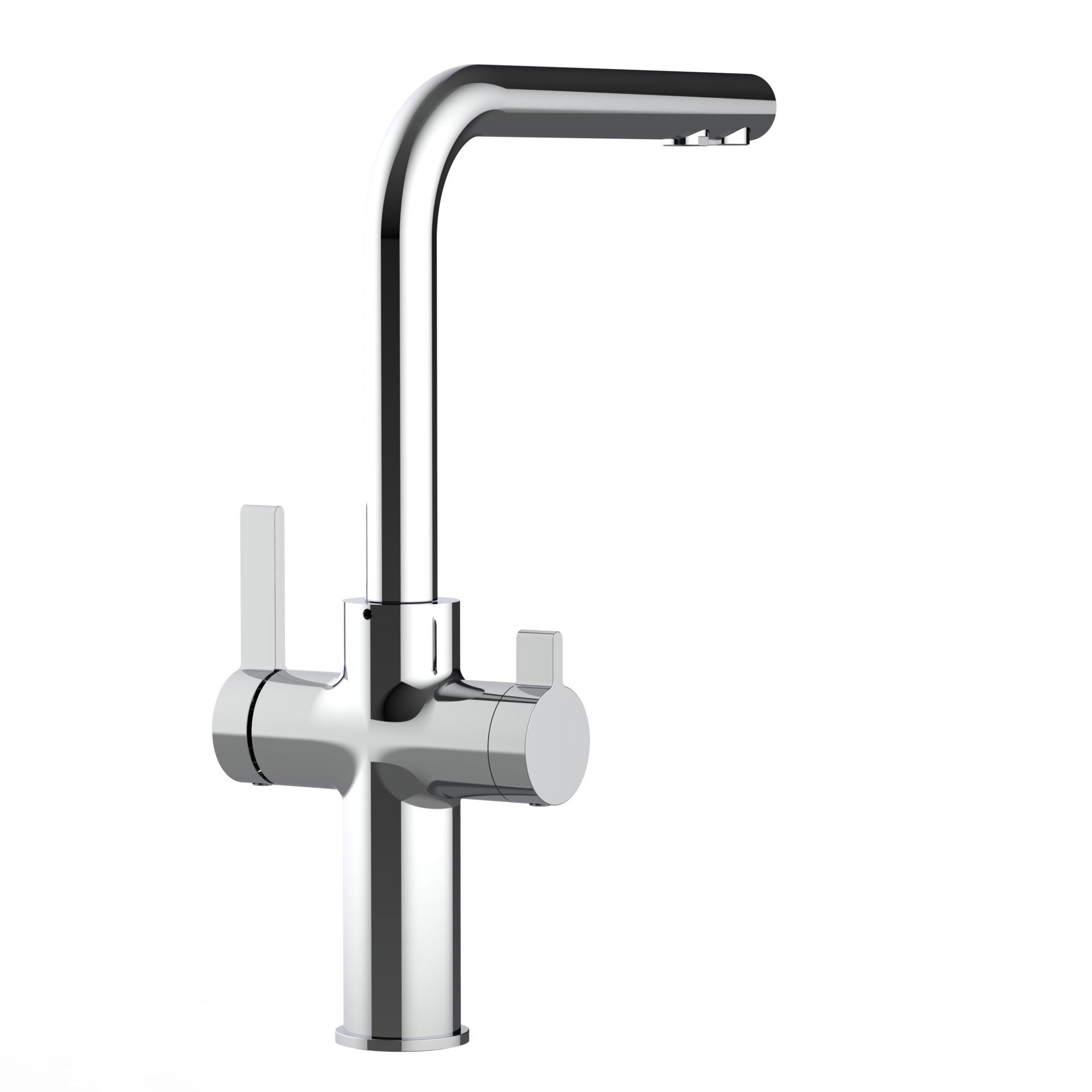

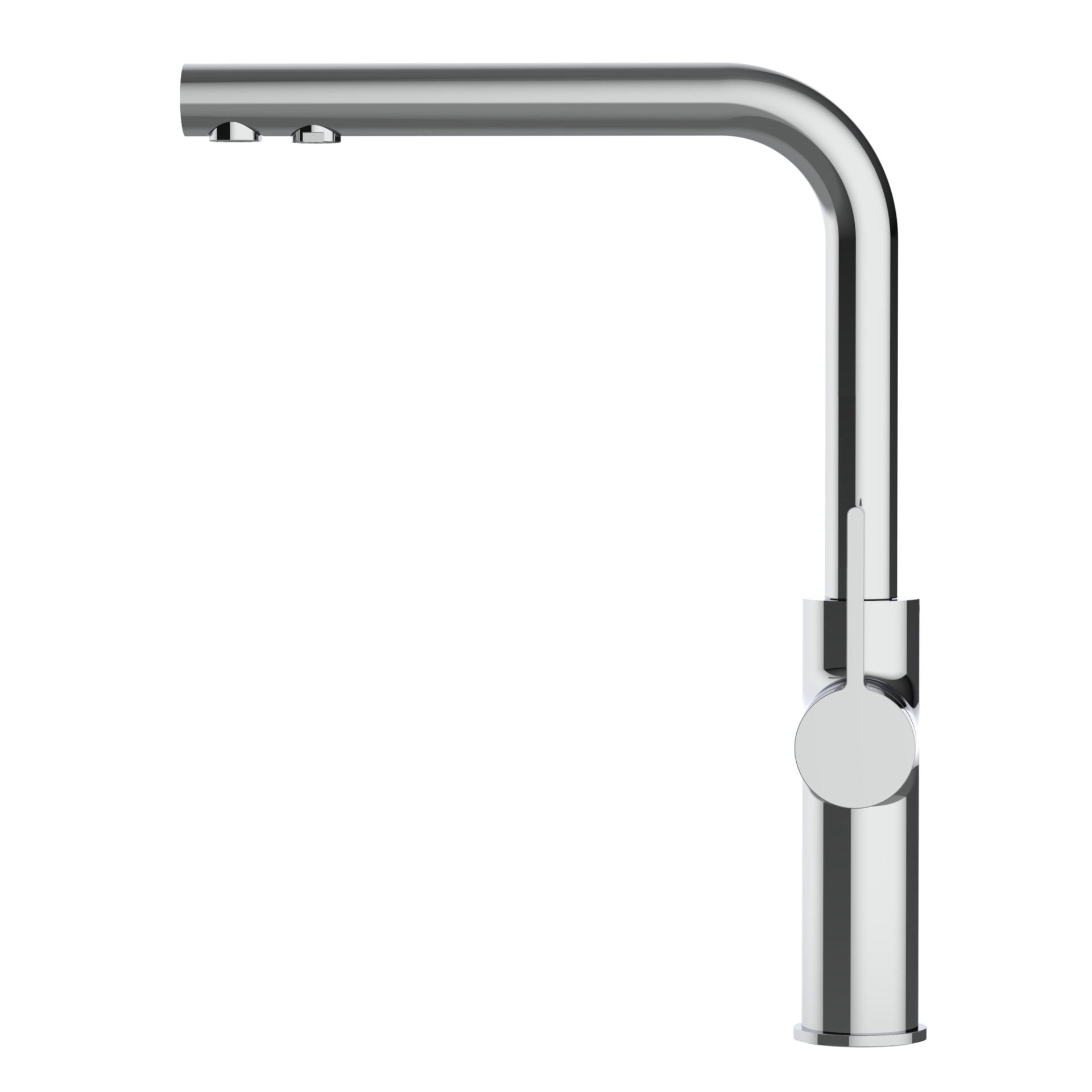

    WS3-012 chrome-plated brass

    Replaces your existing faucet!

    This chrome-plated 3-way faucet is the ideal solution if you don't want or can't install an additional faucet for the water filter. The 3-way faucet features a utility water outlet (cold and hot water) and a separate filtered water outlet. If necessary, a 4th outlet can be opened and the system expanded with a bubbler. The larger mixer lever regulates the unfiltered hot and cold water, while the smaller control regulates the filtered drinking water. Suitable for all under-sink drinking water filters in our range.

    Special features

    • High-quality chrome plating for long-lasting shine
    • Spout can be swiveled 360°
    • diametrical fixing unit "FIX & LOCK" to mount it firmly on your sink
    • No additional drilling required in the worktop or sink
    • Separate regulators for filtered and unfiltered water
    • Separate water supply inside
    • Ceramic cartridges for a long service life
    • Can be expanded with a sparkling water system if required
    • Can be combined with inline swirler

    The enclosed reinforced hoses are made of PEX (polyethylene) on the inside and have a DVGW KTW A1 certification.

    Attention - important information!

    • Do not install behind pressureless boilers!

    • Only inline water swirlers are suitable for this fitting!

    To connect a reverse osmosis filter system or Carbonit filter devices, a suitable connection piece is required , which must be ordered separately:

    - H2O Economy -> tap connector 3/8" AG - 3/8" BSP
    - Rowa TwoFix/OneFix -> tap connector 3/8" AG - 3/8" BSP + reducing connector 3/8' nozzle to 1/4' pipe
    - Carbonit Vario -> Double nipple 3/8" brass or double nipple 3/8" stainless steel

  • Pfeil Technische Daten

    Maße

    Gesamthöhe ab Platte: 32,0 cm
    Höhe ab Platte bis Auslauf Unterkante: 28,5 cm
    Ausladung Auslauf bis Mitte Sockel: 22,0cm
    Durchmesser Sockelblende: 5,0 cm
    Lochgröße Arbeitsplatte/Spüle: Ø 3,5 cm
    Maximale Stärke der Arbeitsplatte: 4,0 cm

    Weitere Daten

    Material: Messing verchromt
    Ventil-Kartusche: keramisch
    Anschlussgewinde: 3/8' IG
    Leitungsdruck: max. 6 bar
    Pfeil Lieferumfang
